Current location: Home > Products > Soot blower >Air preheater soot blower

HX-AHAir preheater soot blower

  • Speed

    ~86mm/min

  • Working pressure

    ~1.5Mpa

  • Scope of application

    Mainly used to clean the heat exchange surface of rotary air preheater.

  • Main features

    The reasonable arrangement of the nozzles and the traveling speed of the nozzles ensure that the heat exchange surface is effectively purged

Product Introduction

HX-AH air preheater soot blower is mainly used to clean the heat exchange surface of the rotary air preheater. Its characteristics are as follows:
※The reasonable arrangement of the nozzles and the traveling speed of the nozzle ensure that the heat exchange surface is effectively purged
※Changing the position of the pressure regulating plate can change the size of the soot blowing pressure
※The unique flexible valve seat design does not affect the sealing effect due to changes in temperature difference
※Box Type beam body The structure provides support and maximum protection for all parts.
※ The effective protection of the elastic cable by the beam body greatly improves the service life of the elastic cable.
※ The barrel flange is designed as a welded flange, with an arc transition between the flange and the barrel. , small stress, long life

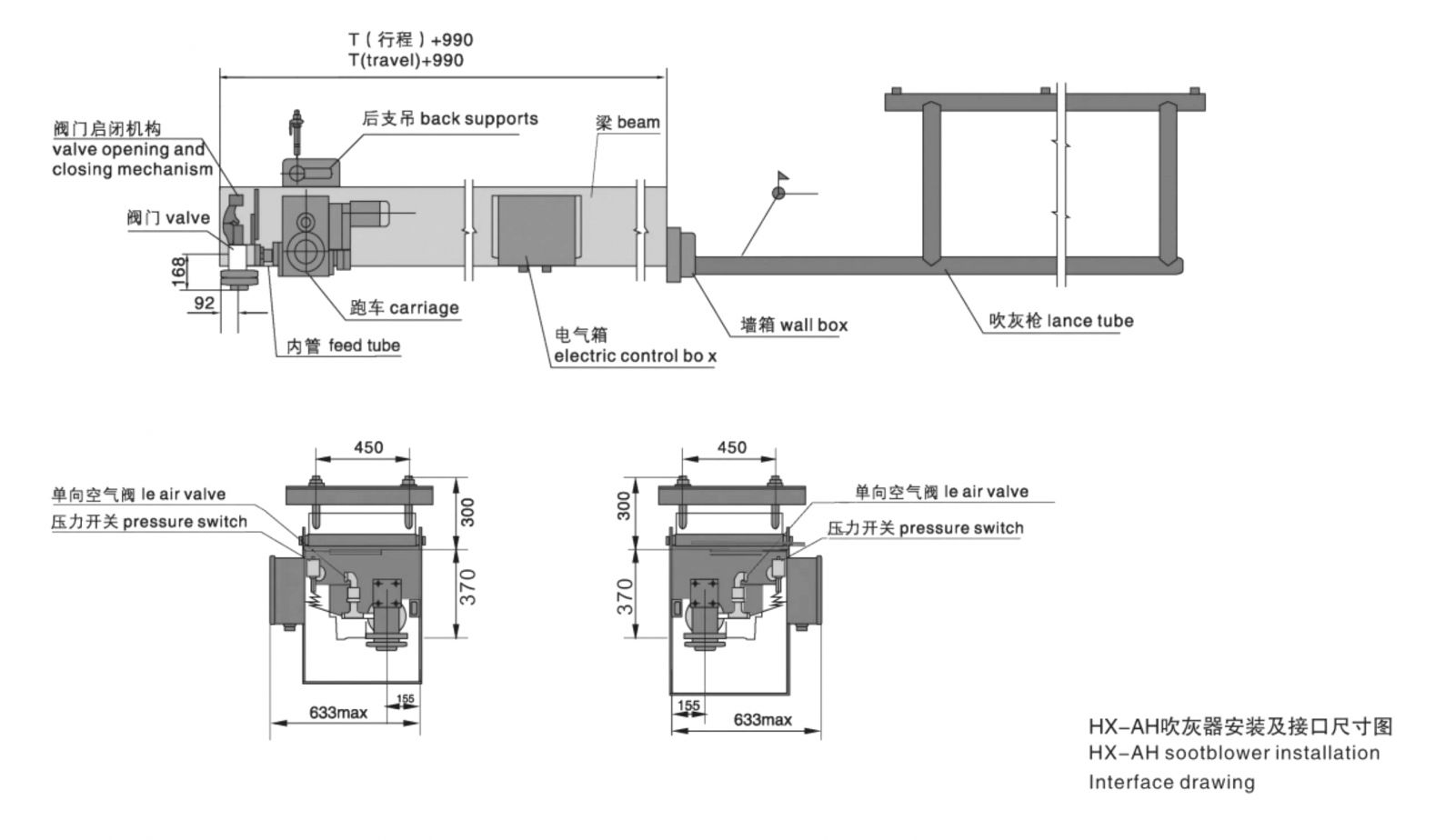

Structure of HX-AH soot blower

HX-AH type soot blower is mainly composed of sports car, poppet valve, beam body, wall box, inner pipe, soot blowing gun and nozzle, electrical box and control, etc.

Product advantages
  • Fully automatic and safe operation:

    Soot blower IoT + remote control + expert management

  • System thermal efficiency>100%:

    The corrugated furnace + threaded smoke pipe improves heat transfer efficiency, and
    the economizer and condenser reduce the exhaust temperature

  • Convenient operation and maintenance:

    Advanced control system enables unattended operation

  • Environmental protection and energy saving:

    Adopt low-nitrogen burner and advanced low-nitrogen combustion technology,
    NOx emission ≤30mg/Nm3

Product Parameters

Blowing travel

According to the contract

Lance tube speed

~86mm/min

Medium

Steam or compressed air

Pressure

~1.5Mpa

/Efficient blowing radius

~2m

Nozzle number&size

It depends on air heater general drawing

Motor type,power

0.25KW/3P/50Hz JS63M2-4



Weight(approximate)


360kg+115kg per meter travel (exclude the furance parts of lance tube)

Motor

0.25KW/3P/50Hz
